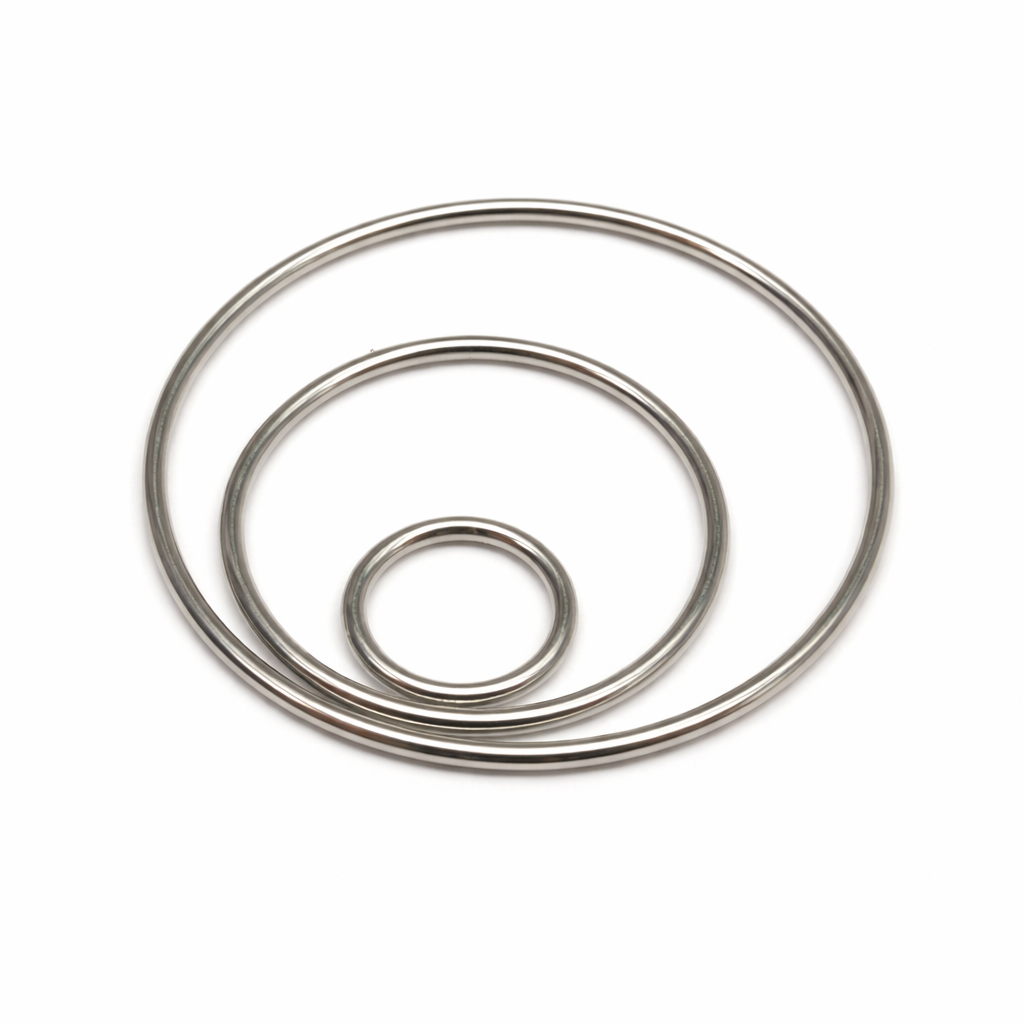

１・メタル中空Oリング Metal Hollow O-Ring
■ 詳細情報 / Detailed Information
≪材質 / Material≫
Stainless Steel 316L / ステンレス316L
≪特長 / Features≫
- 使用温度範囲 / Operating Temperature Range:
-270°C ～ 800°C - 使用圧力範囲 / Operating Pressure Range:
10⁻¹¹ Torr ～ 2000 kg/cm² - シール構造 / Sealing Method:
Oリングをスペーサーの溝または側面に装着し、確実に密封。
The O-ring seals against the groove or spacer surface where it is installed. - シール面仕上げ / Surface Finish:
鏡面仕上げによる高精度な密封性。
The sealing surface is finished to a flat mirror polish. - 形状対応 / Shape Variations:
角型・楕円型など、多様な形状に対応可能。
Customizable in various shapes such as square or oval.
≪仕様 / Specifications≫
| Type | Pipe Diameter (W) | Outer Diameter (OD) | Inner Diameter (ID) | Groove Depth | Groove Width (Min) | Groove Radius (Max) |
| G-Type | 0.89 mm | 6.40 mm – 50.80 mm | 4.57 mm – 49.02 mm | 0.65 mm (+0.05 mm) | 1.30 mm | R 0.25 mm |
| A-Type | 1.57 mm | 11.13 mm – 177.80 mm | 7.99 mm – 174.66 mm | 1.25 mm (+0.05 mm) | 1.90 mm | R 0.30 mm |
PDF (Metal Hollow O-ring G Type Size List)
PDF (Metal Hollow O-ring A Type Size List)

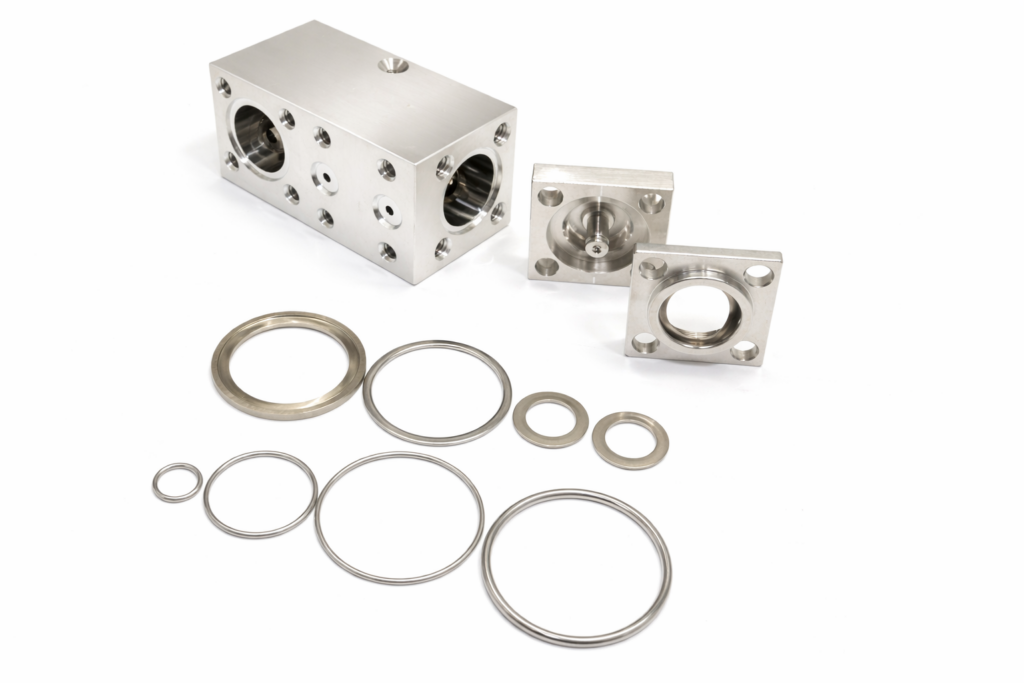

2・メタルガスケット（平形・こ歯形） Metal Gaskets (Flat & Serrated Types)
≪用途 / Applications≫
- Used to seal connection points in stationary components such as valves and flanges.
- Prevents fluid leakage and contamination from foreign matter by sealing micro-gaps at the joint surfaces.
- バルブやフランジなど、固定された部品の接続部をシール。
- 微小な隙間を密封することで、流体漏れや異物混入を防止します。
≪特長 / Features≫
- Available in a wide range of shapes, thicknesses, and materials to suit different sealing requirements.
- 表面仕上げや材質選定により、様々な用途に対応可能。
- 高温・高圧・真空環境など、過酷な条件下でも安定したシール性能を発揮します。
- Compatible with harsh environments such as high temperature, high pressure, or vacuum.
≪仕様 / Specifications≫
表面処理 / Surface Finish: Mirror-polished or per specificationMetal flat seals are used to seal connections in stationary locations, such as components.
By sealing the gaps between the connections, they prevent leakage of fluid passing through the interior and contamination by foreign.
A variety of shapes, thicknesses, and materials are available to suit the connection.
PDF (Metal Gaskets Size List)→English ver
3・ Uタイトシール Metal Seal with Spring Core
構造・特長｜Structure & Features
コイルスプリングを内蔵した金属シールで、ゴムのような圧縮・復元性を備えた高信頼シール。
A metal gasket with an embedded coil spring, offering rubber-like compressibility and recovery while withstanding extreme environments.
■ 製品仕様 / Product Specifications
外層材質 / Outer Coating Material： ステンレス（ニッケルメッキ）
Stainless with Nickel Coating
| 品番 / Part No. | 外径 / OD (mm) | 内径 / ID (mm) | パイプ径 / Pipe (mm) | 内蔵スプリング材質 / Built-in Spring Metal |
| CS10018NS00073 | 9.1 | 7.3 | 1.8 | SUS304 |
| CS10026NS00P14 | 17.2 | 14.6 | 2.6 | SUS304 |
| CS10026NS00P16 | 19.4 | 16.8 | 2.6 | INCONEL X750 |
| CS10026NS00P22 | 25.2 | 22.6 | 2.6 | SUS304 |
用途例｜Example Uses
加速器装置、超高真空装置、放射線・腐食環境、宇宙・原子力分野のシール部など。
Used in accelerators, UHV systems, radiation/corrosive environments, space and nuclear sealing applications.Its shape is a ring with a circular cross-section, and coating covering it.structure consists of a closely wound elastic core in the center.
The outer sheath is made of a familiar ductile metal.
4・金属加工製品 Precision Machined Metal Components
Precision Machined Metal Components
Precision Machined Metal Components
各種産業用途に向けた金属部品（オリフィス、ホルダ、ダイヤフラム、ポペットなど）を、図面や仕様に基づいて設計・加工・供給しています。精密な加工技術により、信頼性の高い部品を提供しています。
We provide custom-designed and precision-machined metal components—such as orifices, holders, diaphragms, and poppets—manufactured to meet customer specifications. Our advanced machining capabilities ensure high reliability and performance for various industrial applications.
採用分野｜Application Fields
半導体製造装置、航空機器、製造設備、研究機関・試験装置など。
Adopted in semiconductor manufacturing, aerospace, industrial equipment, and research/testing systems.
